Gorter fixed staircase – elegant staircase in aluminium

The Gorter fixed staircase is made entirely from anodized aluminium. The choice of material and the design give the staircase a very contemporary and modern look.



Automatic step adjustment during installation

In Gorter fixed staircases, the steps are mounted to the frame in a smart way. As a result, the steps are automatically adjusted horizontally when the staircase is installed. This applies to all floor heights within the dimensions for which the staircase was designed. The automatic adjustment makes sure the staircase assembly is quick and easy.



The Gorter fixed staircase is available in two versions:

Demonstrably safe staircase

The sturdy handrails ensure a secure hold at all times when ascending or descending the stairs. In addition, the steps have been given an anti-slip profile.



Use of fixed staircase with Gorter roof hatch

Gorter staircases are primarily designed to be combined with a Gorter roof hatch (RHT) or glazed roof hatch (RHTG). The following roof hatch combinations are possible in this case:

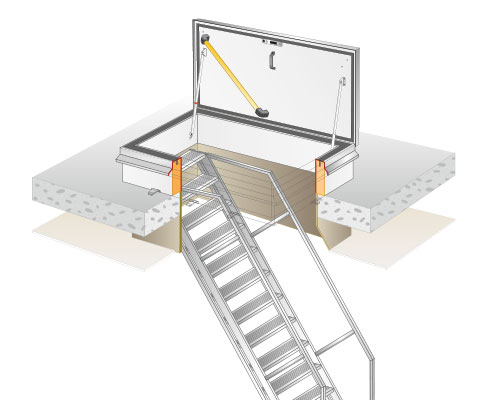

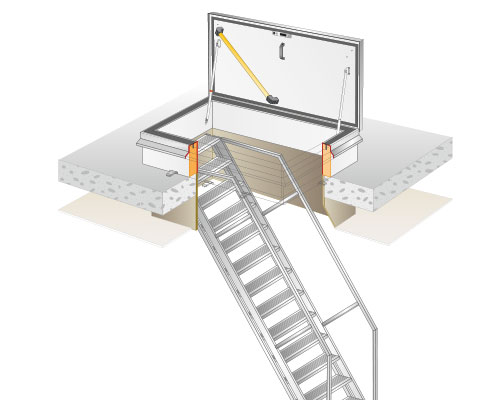

GS50 fixed staircase can be combined with roof hatch:

RHT
1000 x 1500 mm
1000 x 2000 mm
1000 x 2500 mm

1000 x 3000 mm



RHTG

1000 x 1500 mm

1000 x 2000 mm

900 x 2400 mm

900 x 3000 mm

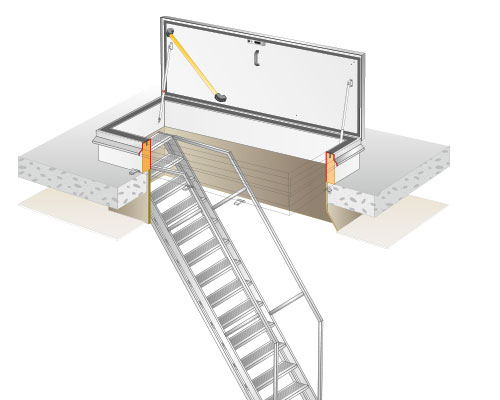

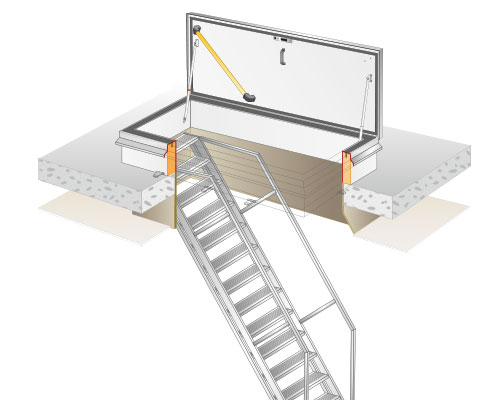

GS55 fixed staircase can be combined with roof hatch:

RHT

1000 x 2000 mm

1000 x 2500 mm

1000 x 3000 mm



RHTG
900 x 2400 mm

900 x 3000 mm



Use of fixed staircase without Gorter roof hatch

The Gorter fixed staircase can also be used separately as a staircase between floors or to access a basement.

>

+
